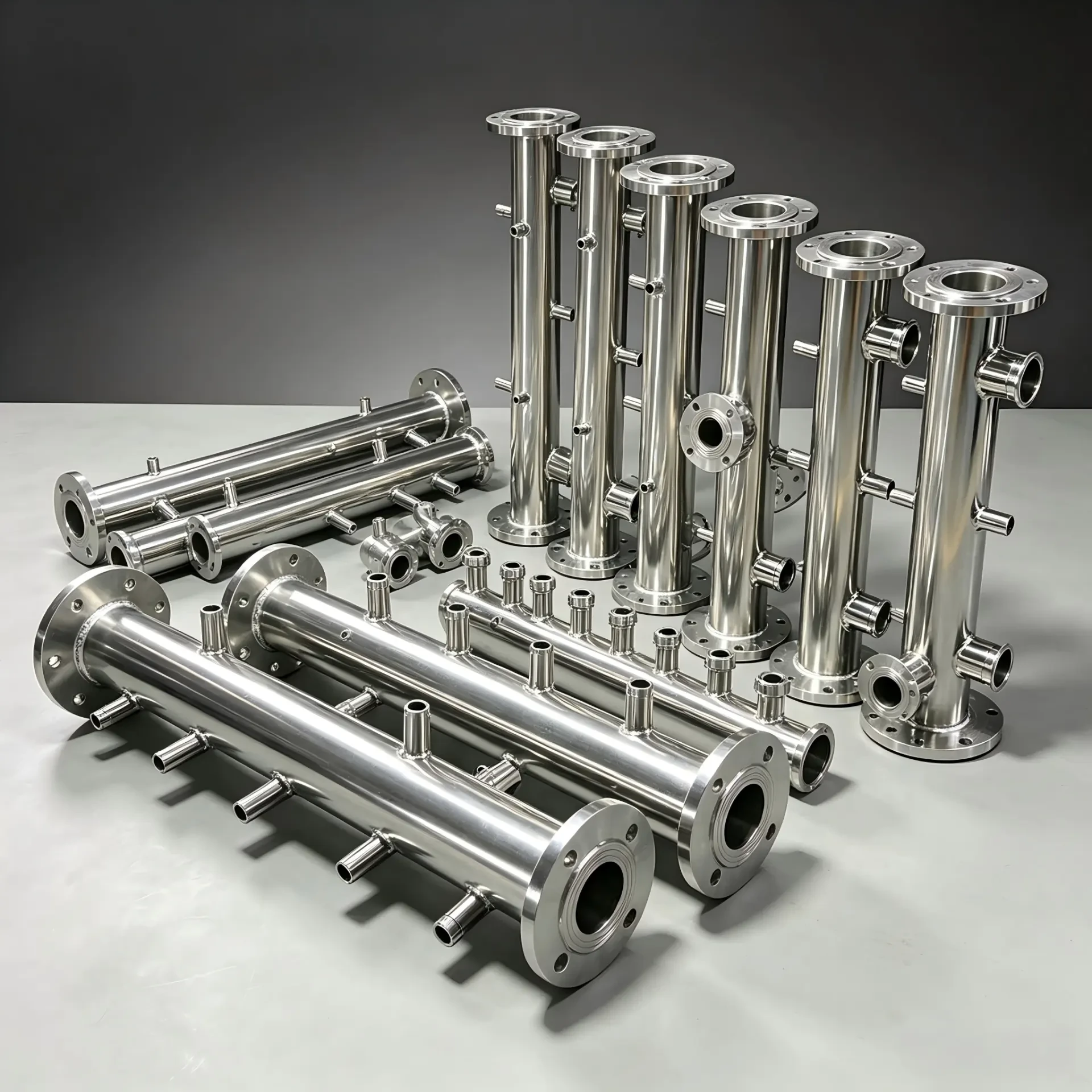

Stainless steel products and project references

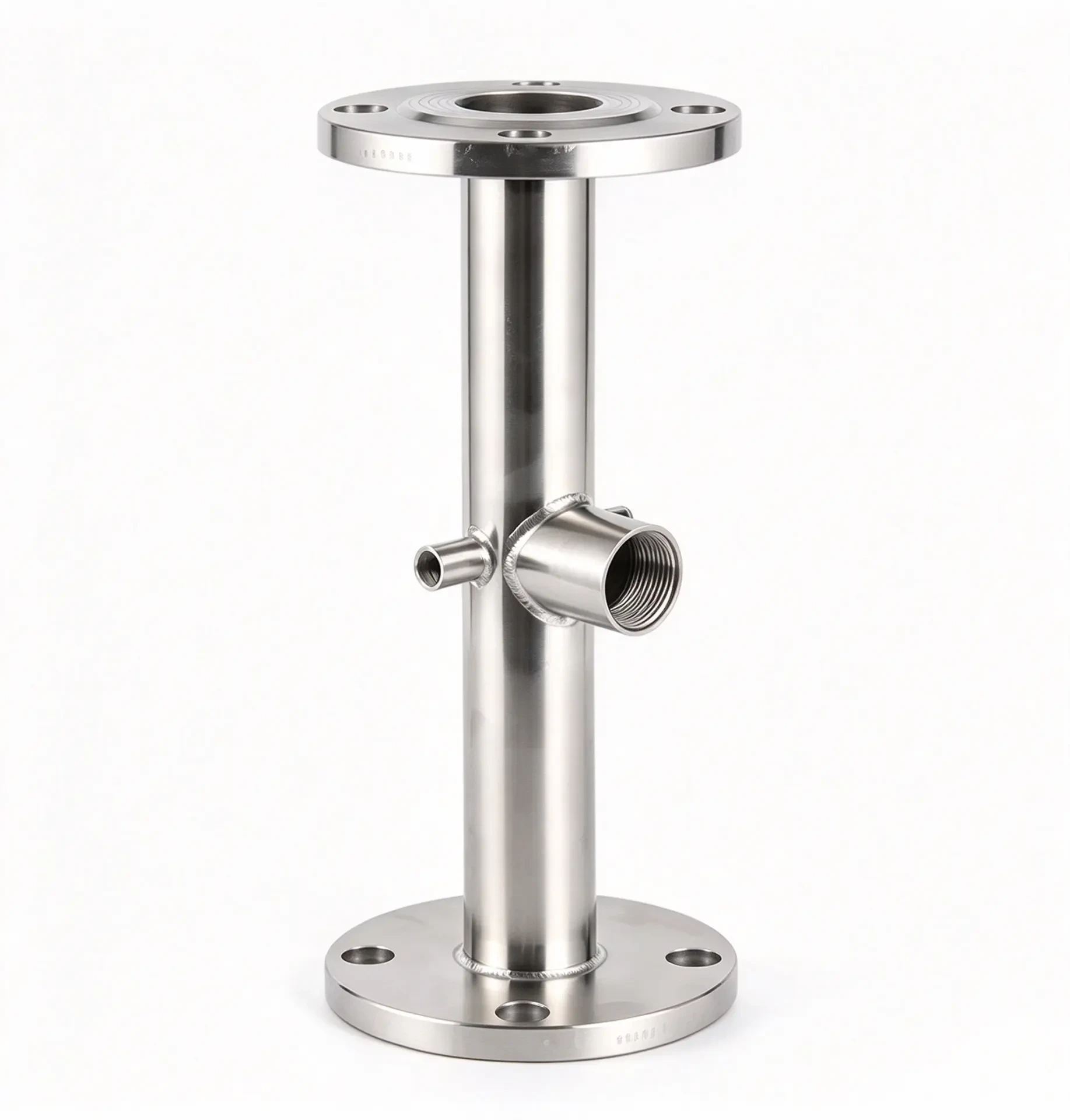

Standard Sizes

• Header size DN25 – DN200
• 2 – 12 outlet branches
• Header length 200 – 2,000 mm
• Wall thickness 1.5 – 3.0 mm

Functional Description

Collects water or coolant from a single supply and spreads it into several balanced outlet branches, keeping flow even across the connected circuits while reducing the number of joints needed on site.

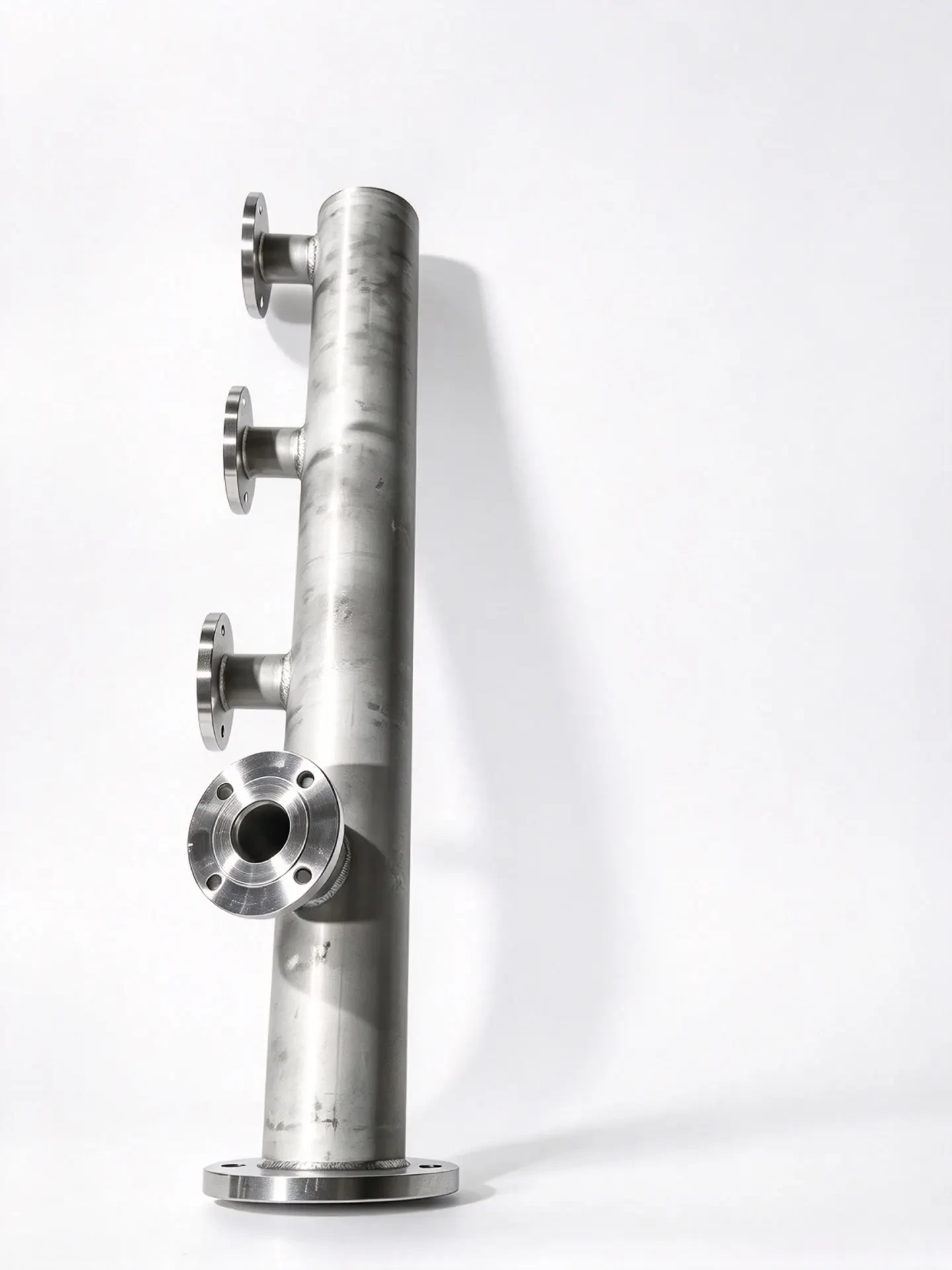

Standard Sizes

• Header size DN15 – DN150
• 2 – 8 outlet branches
• Header length 150 – 1,500 mm
• Working pressure up to 16 bar

Functional Description

Creates a compact distribution point for water treatment, HVAC and process fluid systems, so individual branches can be isolated and serviced without shutting down the main line.

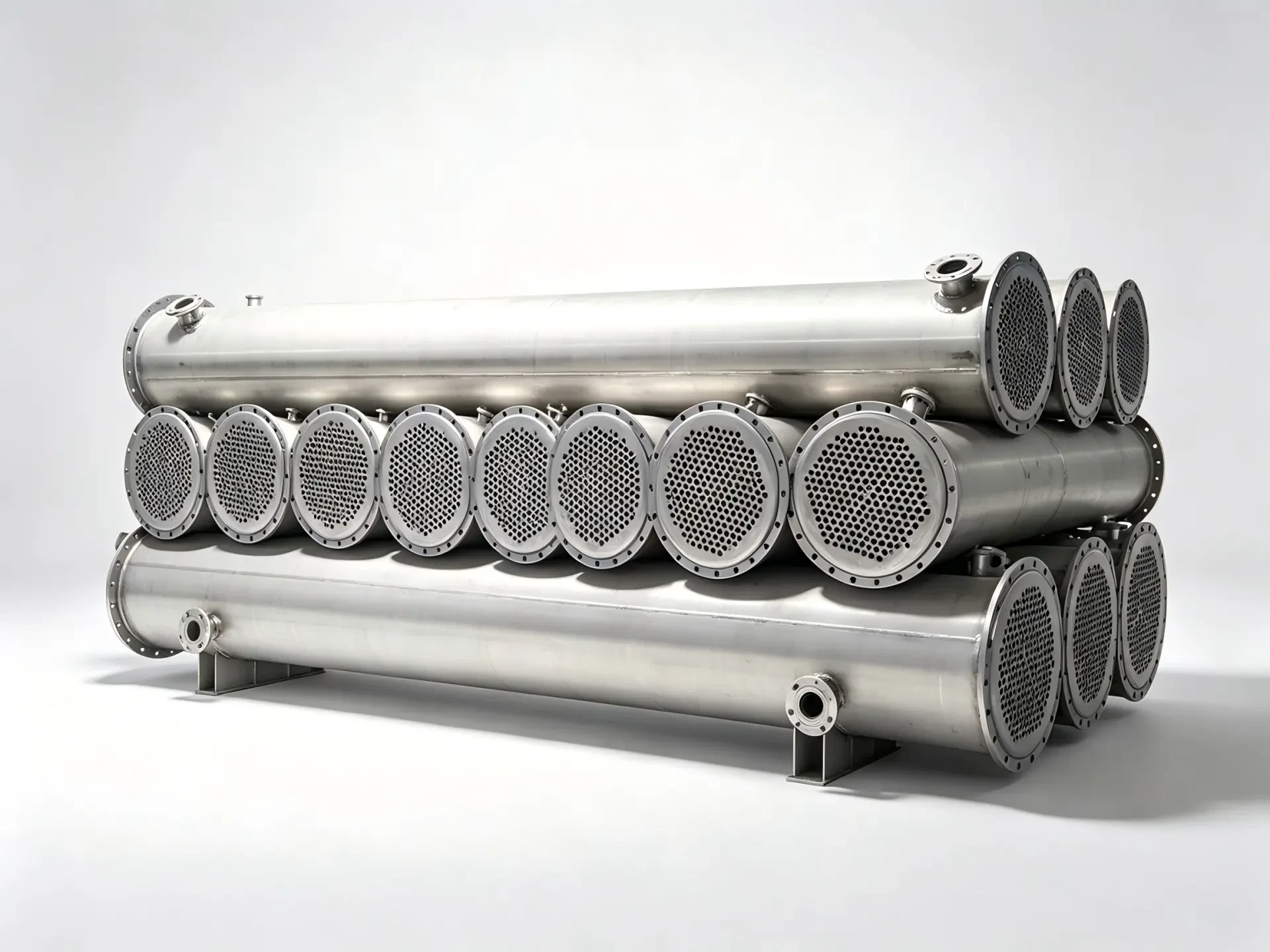

Standard Sizes

• Heat transfer area 0.5 – 20 m²
• Shell size DN50 – DN300
• Connection DN25 – DN150
• Working pressure up to 16 bar

Functional Description

Moves heat between two separate fluid circuits without mixing them, holding a stable outlet temperature during continuous operation and allowing the unit to be opened for cleaning and inspection.

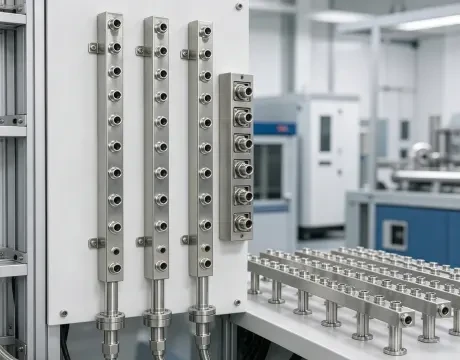

Standard Sizes

• Supply and return pair DN25 – DN80
• 4 – 12 rack outlets
• Manifold length 600 – 2,400 mm
• Working pressure up to 10 bar

Functional Description

Delivers coolant evenly to every connected rack in a high-density room, keeping flow and temperature balanced when racks are added, removed or moved between cabinets.

Standard Sizes

• Outside diameter 16 – 76 mm
• Wall thickness 1.0 – 2.0 mm
• Lengths cut to project drawings
• End connections: weld or press

Functional Description

Carries coolant between the cooling distribution unit and the rack manifolds through a clean inner bore that limits pressure loss and helps keep the loop free of loose particles.

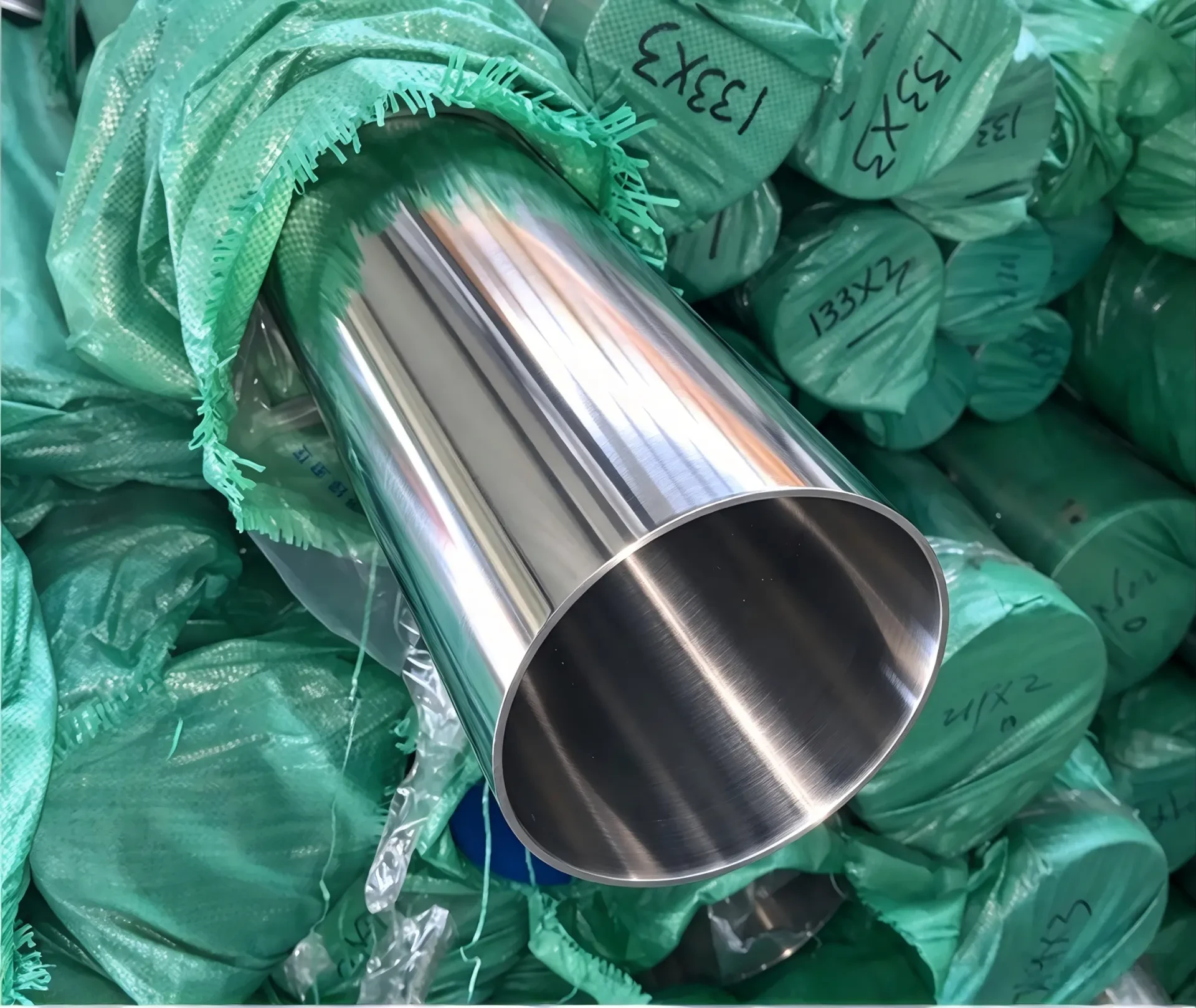

Standard Sizes

• Outside diameter 19 – 219 mm
• Wall thickness 1.2 – 4.0 mm
• Length 3,000 mm or 6,000 mm
• Surface: pickled or polished

Functional Description

Transmits hygienic fluids through a seamless, smooth bore that resists product build-up and supports clean-in-place routines, suited to food, beverage and pharmaceutical lines.

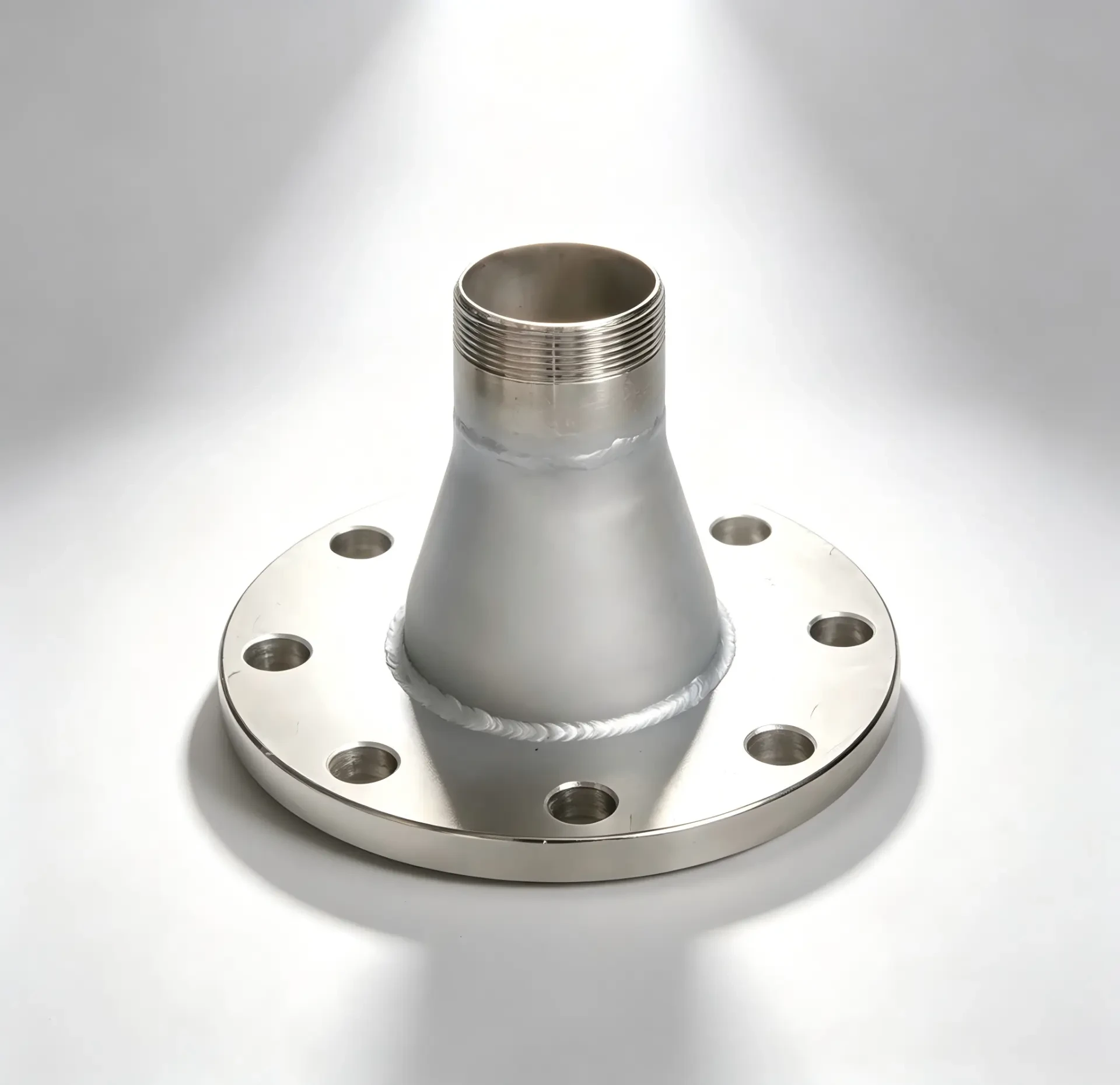

Standard Sizes

• Nominal size DN15 – DN200
• Pressure rating PN10 / PN16
• Weld neck or slip-on type
• Matched to pipe and manifold series

Functional Description

Joins pipes, manifolds and equipment into one assembly with a bolted connection that can be opened again for inspection, replacement or extension of the system.
